Smart Glass Film Switchable
Brand Name: HOMEWELL
Product Name: Smart Glass Film Switchable
Technique:Clear Glass, Tempered Glass, Smart Glass
Material:PDLC
Feature:self-adhesive
Thickness:0.44mm
Standard width:≤14cm/14-18cm
Working voltage:AC48V~65V/50Hz
Power consumption:≤5W/㎡
Lifetime:>80000h
Smart film is a new type of electronic light control product. The electronically controlled smart film is a liquid crystal/polymer hybrid material injected in
the middle of two transparent conductive films.
PDLC film in the absence of an electric field, the electronically controlled smart film is in an opaque state.

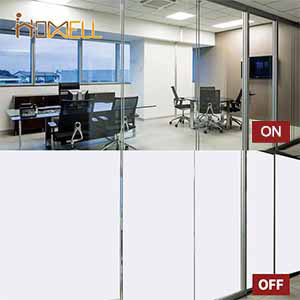

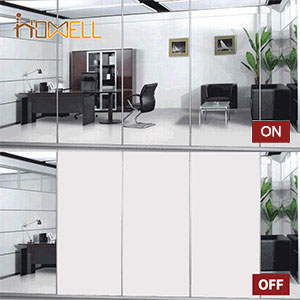

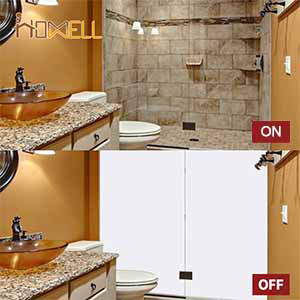

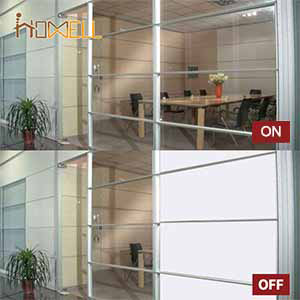

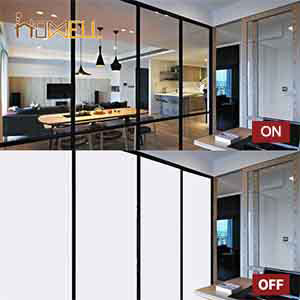

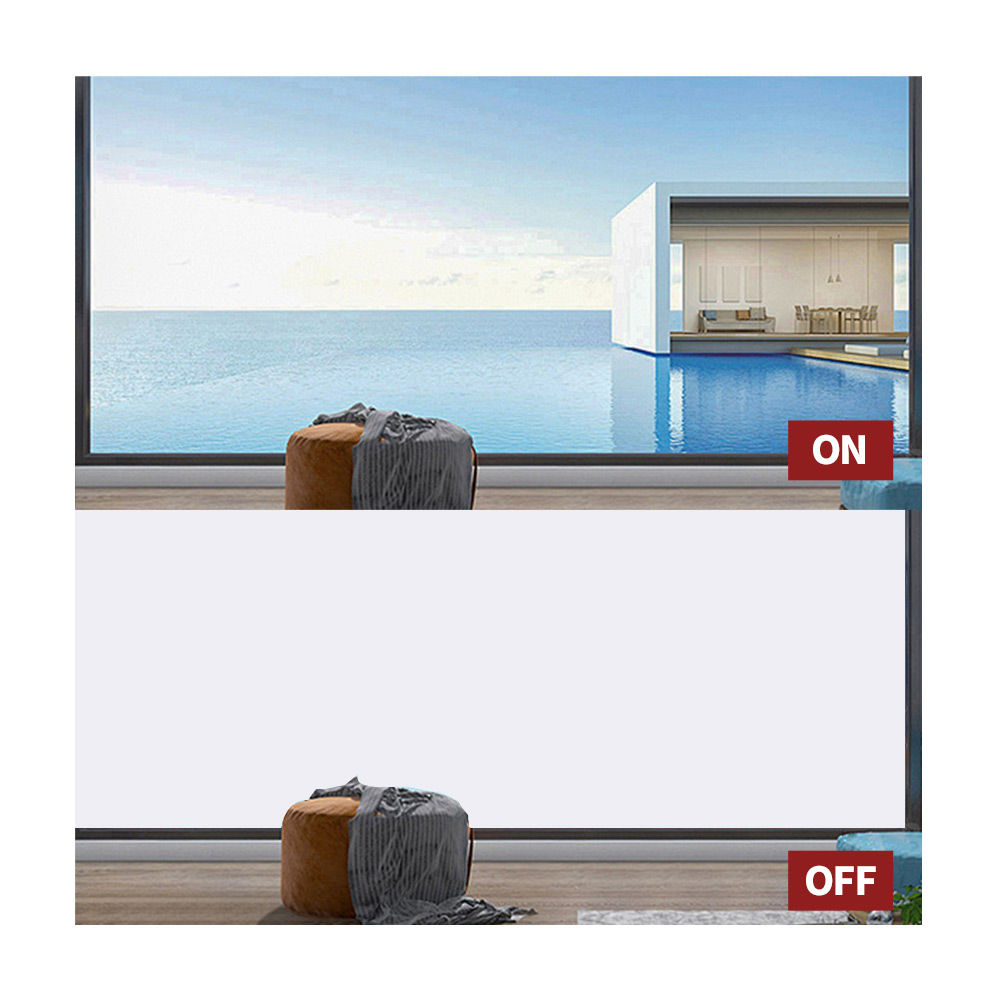

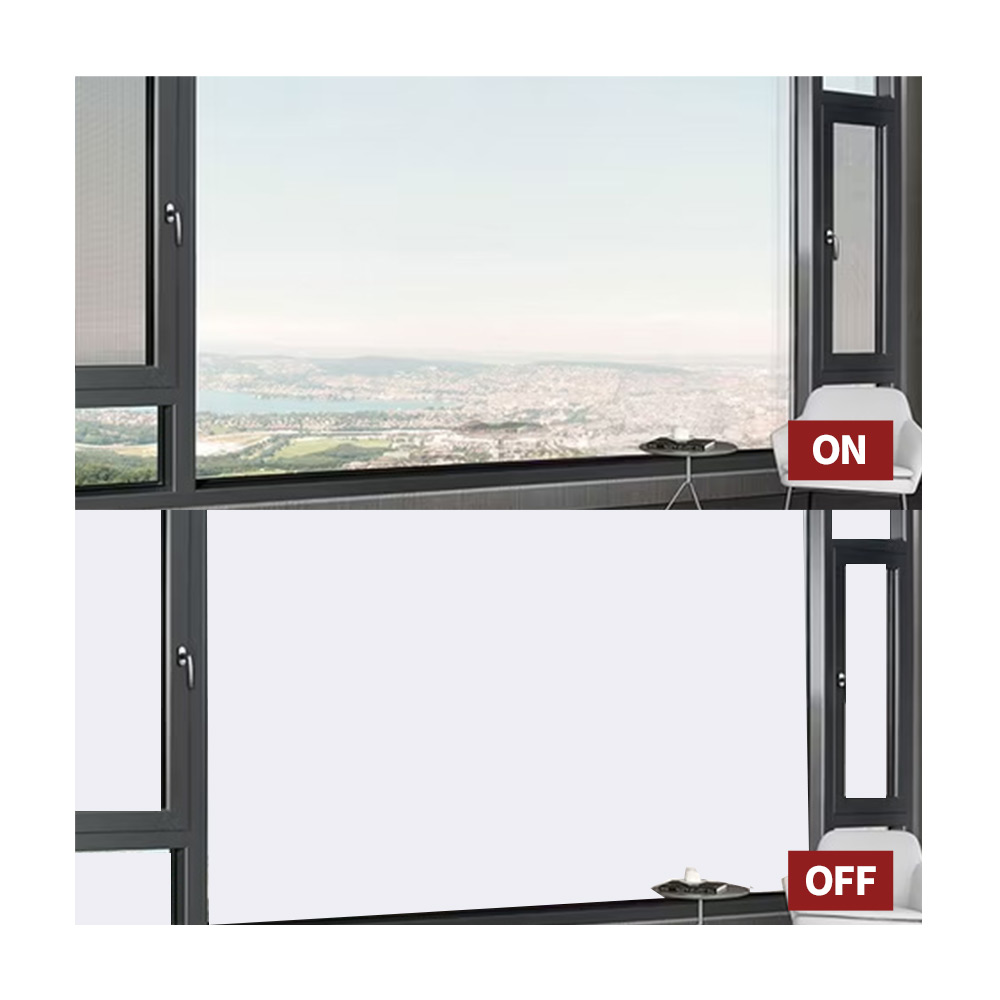

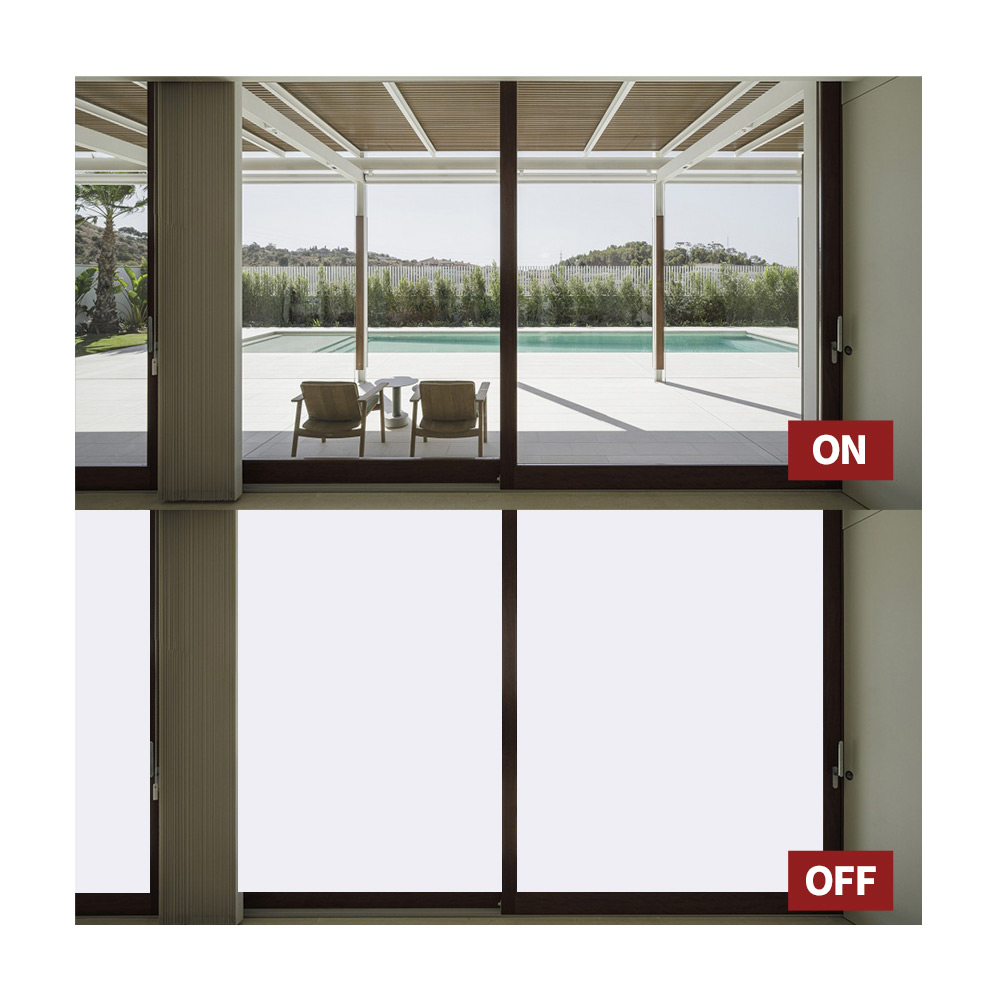

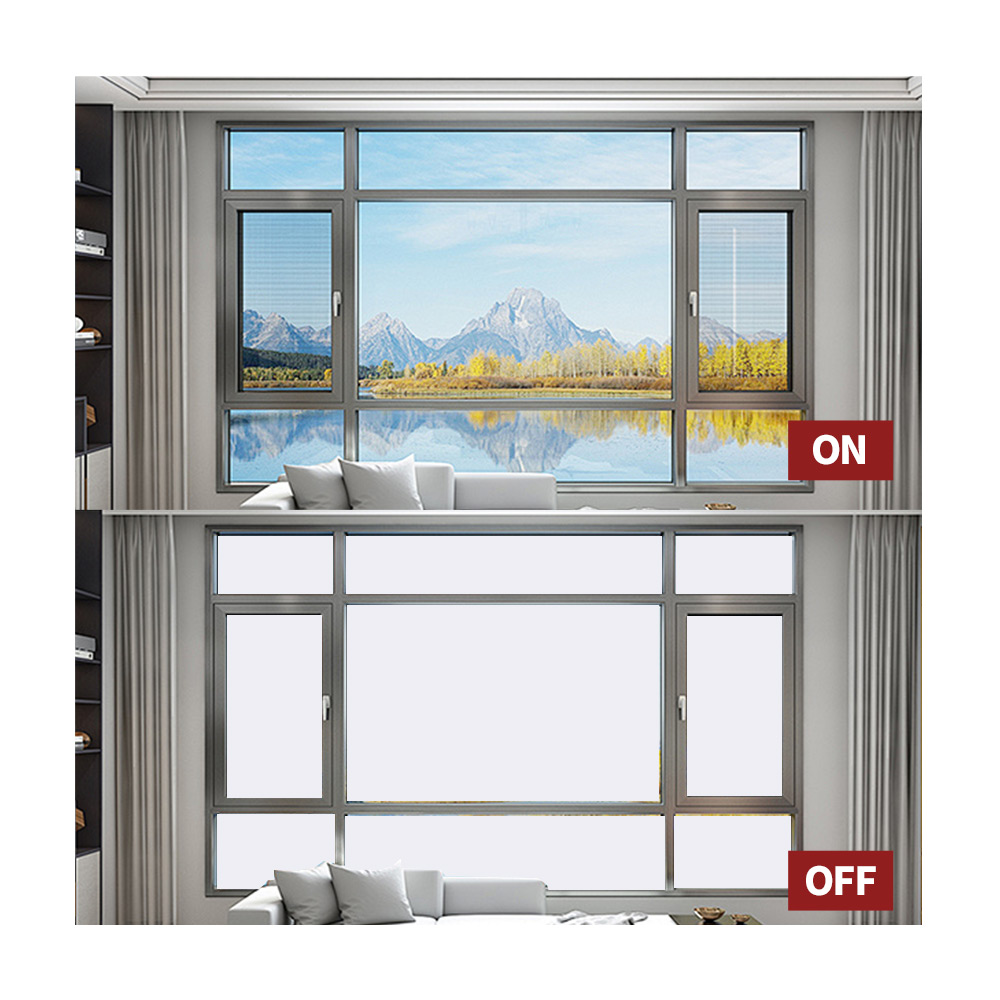

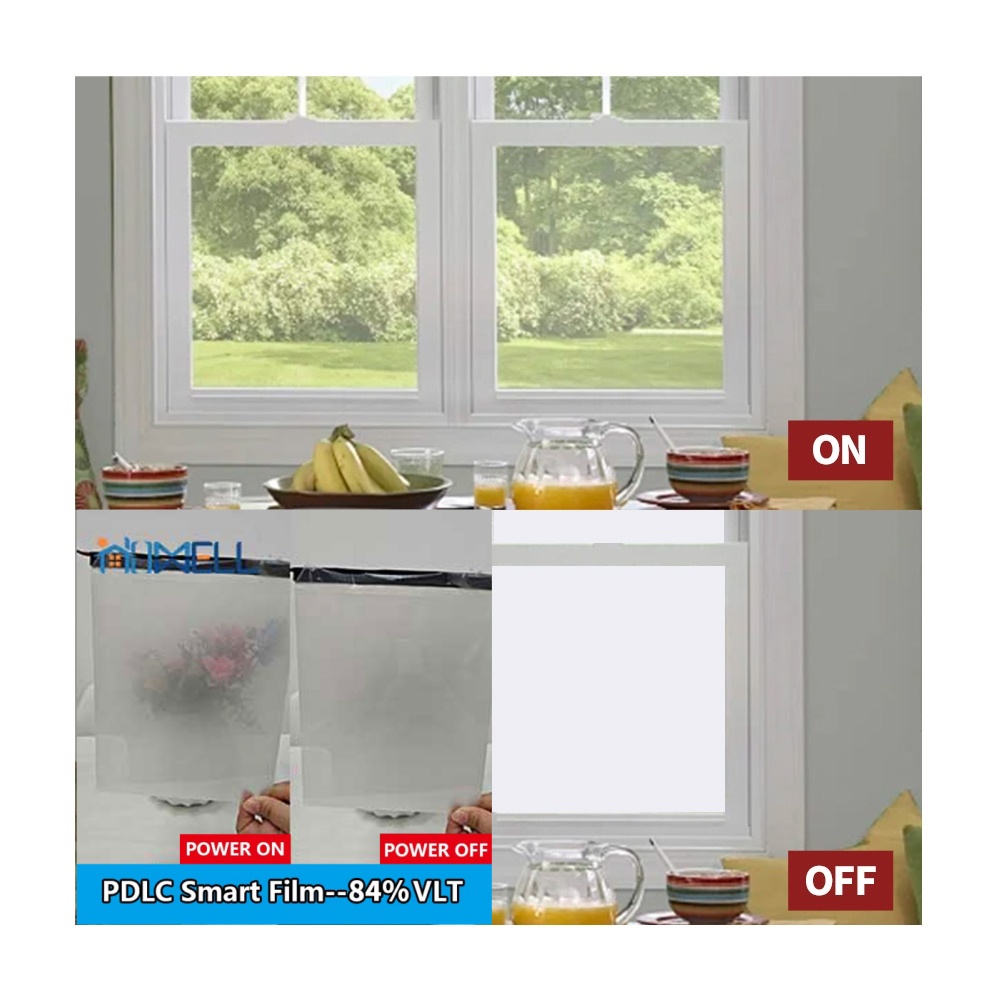

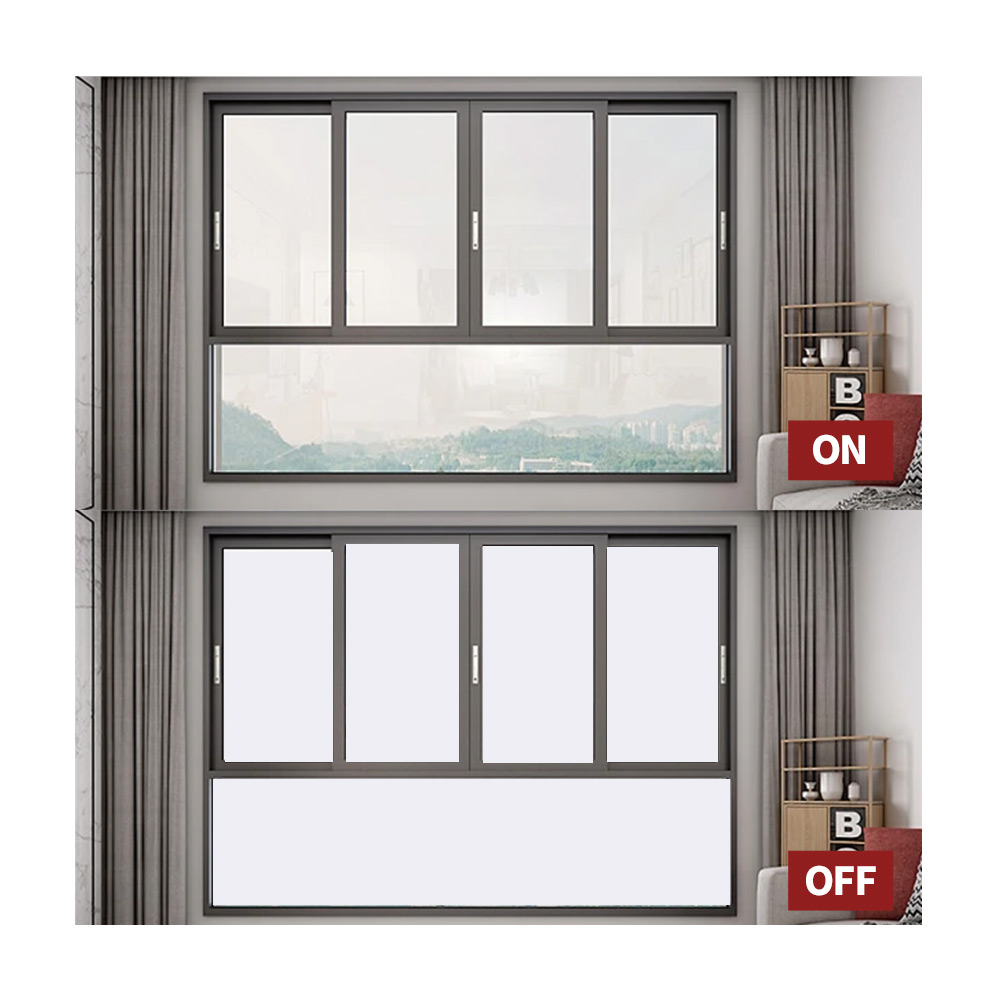

When an alternating current is applied, the liquid crystal molecules are arranged in an orderly manner, at which point the electrically controlled dimming film changes from an opaque state (OFF) to a transparent state (ON).

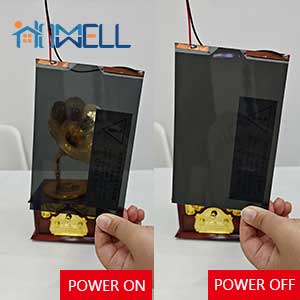

PNLC film different from normal PDLC smart film,the working principle of PNLC film is opaque-power on,clear power off.
The electric field enables a rapid transition from the ON state to the OFF state and from the OFF state to the ON state.
Smart film is usually applied to the surface of the glass or laminated between the glass layers, making the otherwise transparent glass, more possible.
|
Operating
ambient
temperature
|
Transparency
|
Full light tester
|
Parallel light tester
|
||||
|
ON/OFF
|
Haze
|
Full light transmittance
|
b value
|
45° light
|
Parallel light
|
||
|
Low
temperature
|
High transparency
|
OFF
|
94.5 |
78.0
|
5.93
|
/
|
/
|
|
ON
|
4.53 |
84.0
|
3.77
|
58.0
|
82.0
|
||
|
Ultra transparency
|
OFF
|
94.5 |
78.0
|
5.93
|
/ |
/
|
|
|
ON
|
4.53 |
88.0
|
3.77
|
58.0 |
86.0
|
||
|
Ultra high
transparency
|
OFF
|
94.5 |
85.0
|
5.93
|
/ |
/
|
|
|
ON
|
4.53 |
91.0
|
3.77
|
60.0
|
88.0
|
||
|
High
temperature
|
High transparency
|
OFF
|
94.6 |
78.0
|
6.02
|
/ |
/
|
|
ON
|
4.57 |
84.0
|
3.94
|
59.0
|
82.0
|
||
|
Ultra transparency
|
OFF
|
94.6 |
78.0
|
6.02
|
/ |
/
|
|
|
ON
|
4.57 |
88.0
|
3.94
|
59.0
|
86.0
|
||
|
Ultra high
transparency
|
OFF
|
94.6 |
85.0
|
6.02
|
/ |
/
|
|
|
ON
|
4.57 |
91.0
|
3.94
|
60.0
|
88.0
|
||
Product Function
1) Privacy Protection :
The biggest function of Our pdlc film is privacy protection,which can control the glass between transparent and opaque.It can protect your privacy by our smart film
2) Projection Screem:
Our Pdlc film can be used as a good projection screen, in appropriate light environment, if choose high lumen projector, the image of projection effect is very clear(suggest use rear projection mode).
3) Safety Protection
Our pdlc film thickness is about 0.36mm. When installed on your glass window,It can adhensive your window closely, When the window are broken, The film can avoid the window glass flying around and hurt others,
4) Environmental Protection:
Our PDLC film attached on the surface of glass,Which can resist heat over 98% UV and over 95% infrared ray. In order to reduce thermal radiation, it requires shielding partial infrared ray. While if shielding UV can protect indoor furnishings not fade, aging and so on, and protect people against the disease by ultraviolet radiation.
