PDLC Smart Film Switchable
Brand Name: HOMEWELL
Product Name: PDLC Smart Film Switchable
Technique:Clear Glass, Tempered Glass, Smart Glass
Material:PDLC
Feature:self-adhesive
Thickness:0.44mm
Standard width:≤14cm/14-18cm
Working voltage:AC48V~65V/50Hz
Power consumption:≤5W/㎡
Lifetime:>80000h

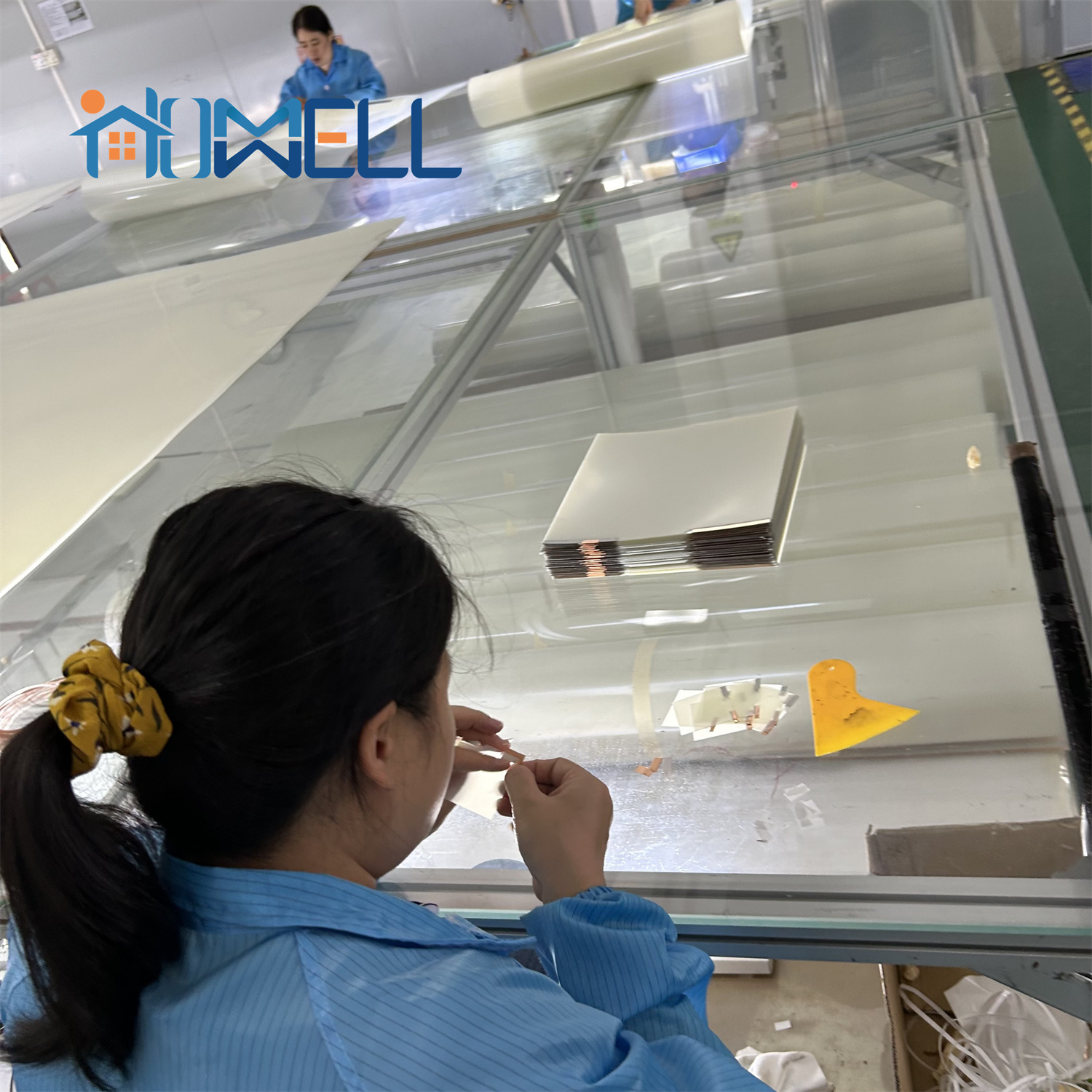

HOMEWELL Switchable Transparent Glass , refered to as STG, this product is made by the dry process of gluing glass, and the switchable transparent film(STF) is glued between two pieces of glass。 The glass meets the national standard for laminated standard.
(1) Exterior structurel dimensions：
Glass thickness +0.76mm（EVA）+0.44mm PDLC film+0.76mm（EVA）+ Glass thickness(Glass thickness:3mm-20mm)
Note: Tpye of glass: super wihte, white, fireproof, Low-E coated glass etc.

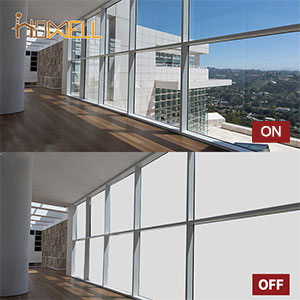

PDLC (Polymer Dispersed Liquid Crystal) Glass is a kindly laminated glass, which can change to be transparent or opaque instant by switching the electricity power by means applying with PDLC film. When power off, coming visible light scatters through the PDLC, and the film turns translucent;When power on, coming visible light transmits the PDLC and the Film turns clear.
2. Perfect function of safety. As smart glass is a special kind of laminated glass, it has all the good function of the laminated glass, mainly the security.
3. Blocks more than 99% UV rays ,avoiding fading in the room.
4. Sound proof. With excellent damping action, the smart glass is easy to block the noise.
5.Projection. When it is under suitable light, the perfect projection appears.
6.No trouble of curtain setting and cleaning.
7.With a modern looking, very good for interior design.
| SPECIFICATIONS FOR DY Electrically Switchable Smart Glass/Film | ||||
| Item | Specification | Power | Common type | UItra clear type |
| Optica paramete | Visible light transmittance | ON | 83% | 85% |
| OFF | >60% | >60% | ||
| Parallel light transmittance | ON | 75% | 78% | |
| OFF | <2% | <2% | ||
| Haze | ON | 5% | 5% | |
| OFF | 96% | 96% | ||
| Viewangle | ON | 145 | 145 | |
| Electrica Parameter | Operating voltage | ON | <100ms | <100ms |
| Responce dissipation | OFF-ON | <200ms | <200ms | |
| Responce time | ON-OFF | <5W/m | <5W/m | |
Product Function
1) Privacy Protection :
The biggest function of Our pdlc film is privacy protection,which can control the glass between transparent and opaque.It can protect your privacy by our smart film
2) Projection Screem:
Our Pdlc film can be used as a good projection screen, in appropriate light environment, if choose high lumen projector, the image of projection effect is very clear(suggest use rear projection mode).
3) Safety Protection
Our pdlc film thickness is about 0.36mm. When installed on your glass window,It can adhensive your window closely, When the window are broken, The film can avoid the window glass flying around and hurt others,
4) Environmental Protection:
Our PDLC film attached on the surface of glass,Which can resist heat over 98% UV and over 95% infrared ray. In order to reduce thermal radiation, it requires shielding partial infrared ray. While if shielding UV can protect indoor furnishings not fade, aging and so on, and protect people against the disease by ultraviolet radiation.
