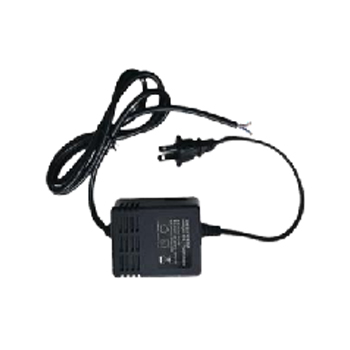

20W power supply
Brand: HOMEWELL
Parameter: Input: 110VAC 60HZ or 220VAC 50HZ(only one choice)
Output: 60VAC MAX.20W (other voltages can be customized)
Output frequency = input frequency
Size: 79*58*48mm
Net Weight(with package): 0.6KG
Safe Application Scope: Single side≤3 Square meters
Two sides≤2.5 Square meters
Transformer is a part of smart film products. it can connected home supply and transfor the walttage to suit smart film needs. transformer can work by remote or knob on the wall. regular transformer can help open and close the smart film. dimming transformer can help smart film switch with dimming effect.
Function: Over voltage protection, over current protection, overload protection, short circuit protection
| PDLC SMART FILM POWER SUPPLY INSTRODUCTION | |||||
| Name | Parameter | Size | Net Weight(with package) | Safe Application Scop | Function |
|
20W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.20W (other voltages can be customized) Output frequency =input frequency |
79*58*48mm | 0.7KG |
Single side≤3 Square meters Two sides≤2.5 Square meters |
Over voltage protection,over current protection, overload protection, short circuit protection |
|
30W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.30W (other voltages can be customized) Output frequency =input frequency |
120*99*65mm | 1.1KG |
Single side≤5 Square meters Two sides≤4 Square meters |
|
|
50W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.50W (other voltages can be customized) Output frequency =input frequency |
1.2KG |
Single side≤8 Square meters Two sides≤6.5 Square meters |
||
|
100W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.100W (other voltages can be customized) Output frequency =input frequency |
180*109*76mm | 2.5KG |
Single side≤15 Square meters Two sides≤12 Square meters |
|
|
200W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.200W (other voltages can be customized) Output frequency =input frequency |
200*120*100mm | 3.9KG |
Single side≤30 Square meters Two sides≤25 Square meters |
|
|
300W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.300W (other voltages can be customized) Output frequency =input frequency |
4.8KG |
Single side≤45 Square meters Two sides≤37 Square meters |
||
|
500W power supply |
Input:110VAC 60HZ or 220VAC 50HZ(only one choice) Output:60VAC MAX.500W (other voltages can be customized) Output frequency =input frequency |
5.5KG |
Single side≤65 Square meters Two sides≤50 Square meters |
||
HOW SMART FILM & SMART GLASS WORKS?
Smart film and glass work by using a technology called PDLC (Polymer Dispersed Liquid Crystal) or SPD (Suspension Polymerization Display) to control the transmission of light through a glass surface.
PDLC smart film consists of two layers of transparent conductive film, which sandwich a layer of liquid crystals dispersed in a polymer matrix. The liquid crystals are randomly oriented when the film is not powered, causing the film to appear opaque or frosted. When an electrical current is applied, the liquid crystals align and the film becomes clear or transparent, allowing light to pass through.
Both smart film and glass can be controlled with a switch, remote control, or smartphone app, allowing the user to adjust the level of privacy and light transmission as needed. Smart glass and film are becoming increasingly popular in applications such as privacy windows, conference rooms, and automotive windows, as they offer convenience, energy efficiency, and enhanced security.
